Industrial Ultrasonic Homogenizer: JH Large Systems for Coating, Ink & Battery Slurry

HANGZHOU, ZHEJIANG, CHINA, September 4, 2026 /EINPresswire.com/ -- Scaling high-power sonochemical liquid processing from laboratory beakers to continuous multi-ton industrial production lines presents formidable fluid dynamic and acoustic engineering challenges. When processing high-throughput fluid streams of advanced ceramic coatings, pigment inks, and battery electrode slurries, standard inline sonicators frequently fail due to hydraulic short-circuiting, uneven acoustic cavitation exposure, and rapid frequency detuning under fluctuating fluid loads. Implementing a heavy-duty continuous industrial ultrasonic circulation system overcomes these commercial throughput bottlenecks by forcing viscous liquid streams directly through synchronized, high-intensity acoustic cavitation zones. To address these industrial-scale processing bottlenecks, Hangzhou Precision Machinery Co., Ltd. (JH) engineers heavy-duty industrial ultrasonic homogenizers and turnkey circulation skids designed to deliver uniform acoustic energy transfer, maintain automatic resonance under dynamic viscosities up to 6,000 cP, and support continuous 24-hour manufacturing operations.
Engineering reliable continuous fluid sonication at JH requires a layered chemical engineering approach that addresses the physical root causes of acoustic scale-up failures. At industrial flow velocities exceeding several cubic meters per hour, fluid moving through conventional pipeline reactors tends to establish laminar core streams that bypass the localized high-intensity cavitation cloud concentrated around the titanium horn face. To resolve this fundamental fluidic challenge, JH engineers integrated multi-unit ultrasonic homogenizer flow-cell geometries, dynamic digital frequency-tracking generators, and real-time double-jacketed temperature regulation systems that together guarantee homogeneous acoustic exposure across high-volume production batches.

Hydrodynamic Bypassing and Residence Time Distribution in High-Flow Streams
In high-speed liquid processing, the root cause of inconsistent particle de-agglomeration and emulsion polydispersity is wide residence time distribution within the acoustic reaction chamber. When high-viscosity coatings or concentrated battery slurries enter an open flow pipe containing an ultrasonic probe, fluid friction near the chamber walls slows down peripheral flow, while central fluid streams accelerate directly past the horn tip. This velocity profile allows a significant fraction of un-sonicated or under-processed slurry to escape the reactor without encountering the intense acoustic micro-jets necessary for sub-micron particle breakdown.
Additionally, intense acoustic cavitation generates a dense barrier of microscopic bubbles around the vibrating ultrasonic homogenizer probe face, known as cavitation shielding. In improperly designed flow chambers, this bubble cloud reflects acoustic energy back into the ultrasonic homogenizer rather than transmitting it into the passing fluid, drastically lowering specific energy density. Eliminating this acoustic bypassing requires tight hydraulic confinement, controlled fluid velocity profiling, and positive backpressure regulation to force all fluid elements directly through the primary cavitation zone.

Pressurized Multi-Reactor Manifold Architecture in Series and Parallel Flow
JH industrial ultrasonic systems resolve residence time maldistribution through heavy-duty, flow-engineered reactor chambers constructed from electropolished 316L stainless steel. Rather than treating fluid in loose pipeline sections, JH flow-cell reactors guide liquid streams through precision annular flow channels directly across the radiating face of 1.5kW, 2.0kW, or 3.0kW industrial titanium horns. Operating under positive hydraulic backpressures up to 0.6 MPa, these sealed reactors suppress acoustic decoupling, compress cavitation bubble dynamics, and intensify localized collapse violence to shatter nanoparticle agglomerates instantly.

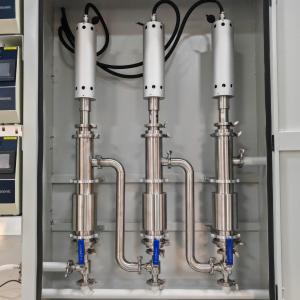

To achieve commercial throughputs exceeding thousands of liters per hour, JH configures these 3.0kW flow-cell units into modular multi-unit ultrasonic homogenizer production skids. Due to the continuous flow tank architecture, circulation processing is seamlessly established for batch capacities starting from 50L (including standardized 50L, 100L, and 200L vessels) up to multi-ton daily runs, integrating high-power 3.0kW circulation pumps (0 to 3000 rpm) and precision mechanical agitators (0 to 1000 rpm). Arranging flow cells in series subjects passing fluids to successive stages of acoustic cavitation, progressively narrowing particle size distributions and ensuring 100% acoustic exposure without recirculation bottlenecks. For mega-scale fluid processing, parallel manifold configurations divide high-volume feed streams evenly across synchronized flow banks, allowing manufacturers to expand processing capacity linearly without altering validated chemical formulation parameters.

Intelligent Digital Resonance Tracking Under Dynamic High-Viscosity Loading
A major operational failure mode in high-volume industrial homogenization is acoustic generator detuning caused by fluctuating fluid rheology. As high-solid battery slurries, functional coatings, or resin inks pass through an acoustic chamber, localized changes in solid concentration, temperature, and shear-thinning viscosity continuously alter acoustic impedance. Traditional analog generators with fixed operating frequencies lose acoustic resonance under these fluctuating dynamic loads, causing power output drops, ultrasonic homogenizer overheating, and un-homogenized product bypass.

JH large-format industrial homogenizers incorporate intelligent digital frequency-tracking generators that continuously monitor acoustic circuit impedance and auto-tune operating frequency around 20kHz in real time. This intelligent control architecture delivers focused cavitation intensities between 1 and 4.5 W/cm2 and stable peak-to-peak amplitudes of 10 to 100 um, multiplying processing efficiency up to 200 times in targeted reaction zones while built-in multi-level protection mechanisms extend operational service life to more than 5 years under round-the-clock 24-hour industrial duty. This rapid dynamic tracking ensures that the ultrasonic homogenizer constantly operates at peak electromechanical resonance, regardless of sudden viscosity spikes up to 6,000 cP. Digital generator controls permit stepless amplitude adjustments from 30% to 100%, allowing operators to fine-tune cavitation shear intensity precisely to formulation tolerances without mechanical reconfiguration.

Double-Jacketed Thermal Regulation and High-Endurance Titanium Metallurgy
In high-power industrial sonochemistry, high acoustic energy inputs generate substantial process heat that can rapidly degrade temperature-sensitive polymers, organic ink pigments, botanical bioactives, or battery binders. Uncontrolled thermal build-up causes premature solvent evaporation, slurry gelling, and binder cross-linking inside processing pipelines. JH continuous industrial flow-cell reactors integrate heavy-duty double-jacketed cooling chambers that circulate chilled water or glycol directly around the acoustic reaction zone, dissipating excess cavitation heat and maintaining slurry temperatures strictly below 100°C during continuous high-tonnage runs.
Equipment longevity in abrasive and chemically aggressive environments depends entirely on contact metallurgy. JH precision-machines all industrial horns from certified medical-grade titanium alloy, which offers superior fatigue resistance, unmatched acoustic velocity transmission, and exceptional resistance to cavitation pitting. Combined with sanitary 316L stainless steel chambers, quick-connect tri-clamp fittings, and full automated Clean-in-Place (CIP) and Sterilize-in-Place (SIP) compatibility, JH industrial systems operate reliably in continuous round-the-clock manufacturing plants with minimal scheduled maintenance.

Process Standardization for Advanced Coatings, Ceramic Inks, and Battery Slurries

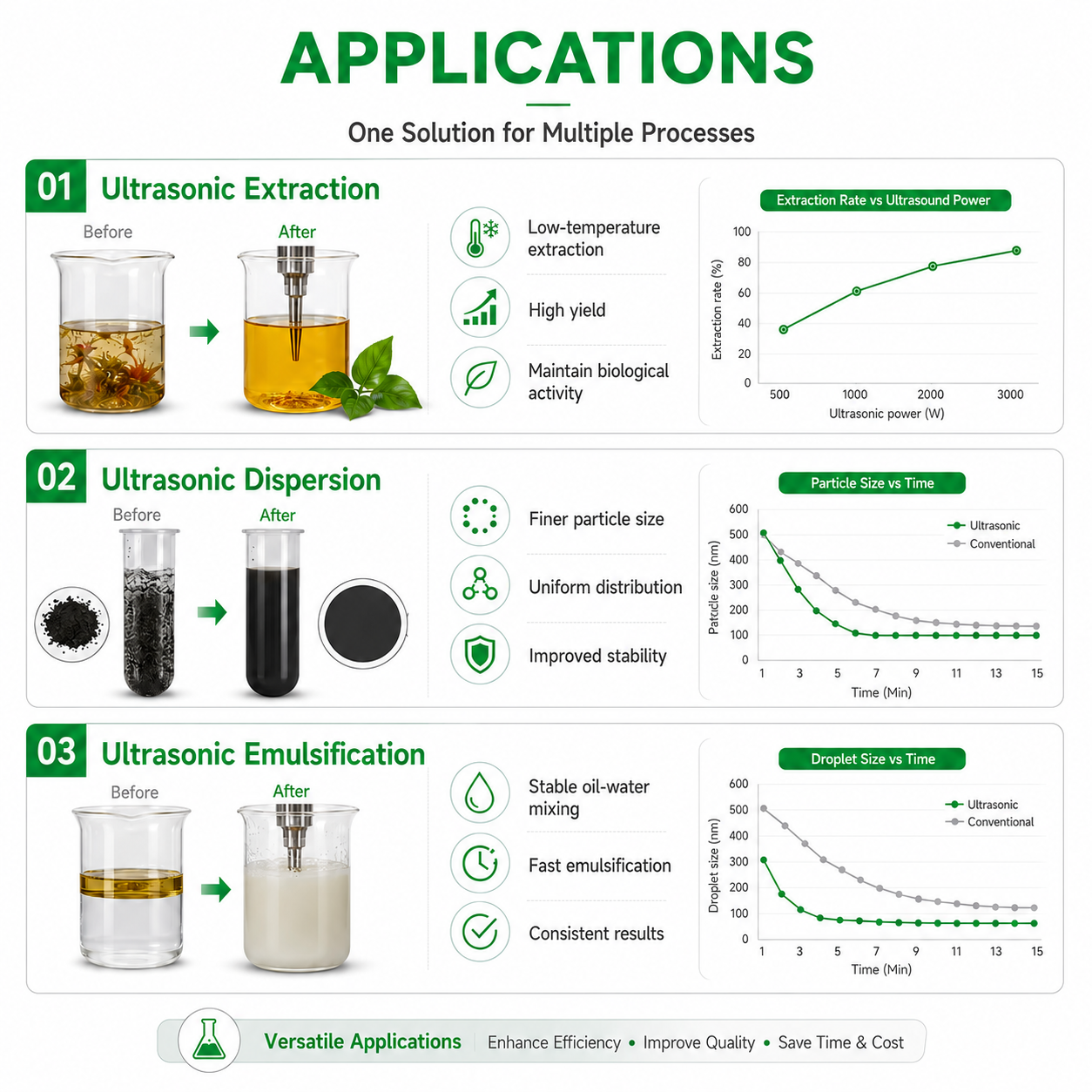

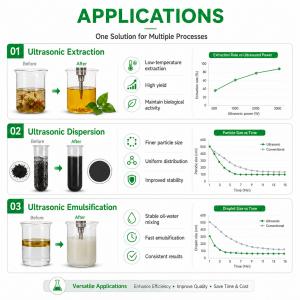

Deploying JH large-format ultrasonic systems establishes a standardized, repeatable processing standard across demanding manufacturing sectors. In lithium battery electrode slurry production, inline ultrasonic cavitation de-agglomerates conductive carbon black and active cathode particles, lowering slurry dynamic viscosity by 20% to 40% and supporting higher solid loading formulations up to 70% or higher without pinhole defects. In ceramic coating and digital inkjet formulations, sub-micron cavitation shearing breaks agglomerates below 100 nanometers, preventing nozzle clogging, enhancing optical density, and improving film adhesion across high-speed industrial printing lines with complete batch-to-batch consistency.

Conclusion and Large-Scale Industrial Homogenizer Sourcing Portal
Overcoming the complexities of continuous industrial liquid processing requires an integrated acoustic architecture that combines high-power 20kHz resonance, precision flow-cell hydrodynamics, automatic frequency tracking, and robust temperature control. With 15 years of specialized acoustic engineering expertise, CE certification, and modular multi-unit ultrasonic homogenizer skid designs, JH provides global enterprises with turnkey industrial circulation systems engineered for high-volume commercial reliability and maximum energy efficiency. Each system is designed for continuous 24-hour industrial duty, empowering manufacturers to achieve unmatched product homogeneity, higher solids throughput, and predictable production scaling across demanding manufacturing environments.
To request detailed technical specifications for continuous industrial ultrasonic circulation systems, flow-cell engineering CAD drawings, pilot testing reports, or custom multi-unit ultrasonic homogenizer production skid quotations for your manufacturing plant, visit the official company portal: https://www.hzpmsonic-en.com/. For direct engineering consultations regarding acoustic power density matching, inline manifold design, fluid viscosity handling, and turnkey plant integration, contact the technical sales department.
